Smart Unmanned Order System







Intro

Develop Period
2017.09 ~ 2018.07
Purpose
∎ Developed GUI for the Counter and for the unmanned ordering machine
∎ Informed customers of waiting information, enabling them to select menus efficiently when ordering
Service
Order using Kiosk and App
Wait information is available before ordering
Vibration bell that shows waiting information
Development
∎ Kiosk
  - Eclipse
  - Using Java Swing

∎ Counter
  - Eclipse
  - Using Java FX

∎ App
  - Android Studio
  - Using Java

∎ Vibration bell
  - RaspberryPi
  - Using C language
Result
∎ By providing waiting information, customers were able to increase satisfaction and save labor costs by using unmanned ordering machines.




scenario

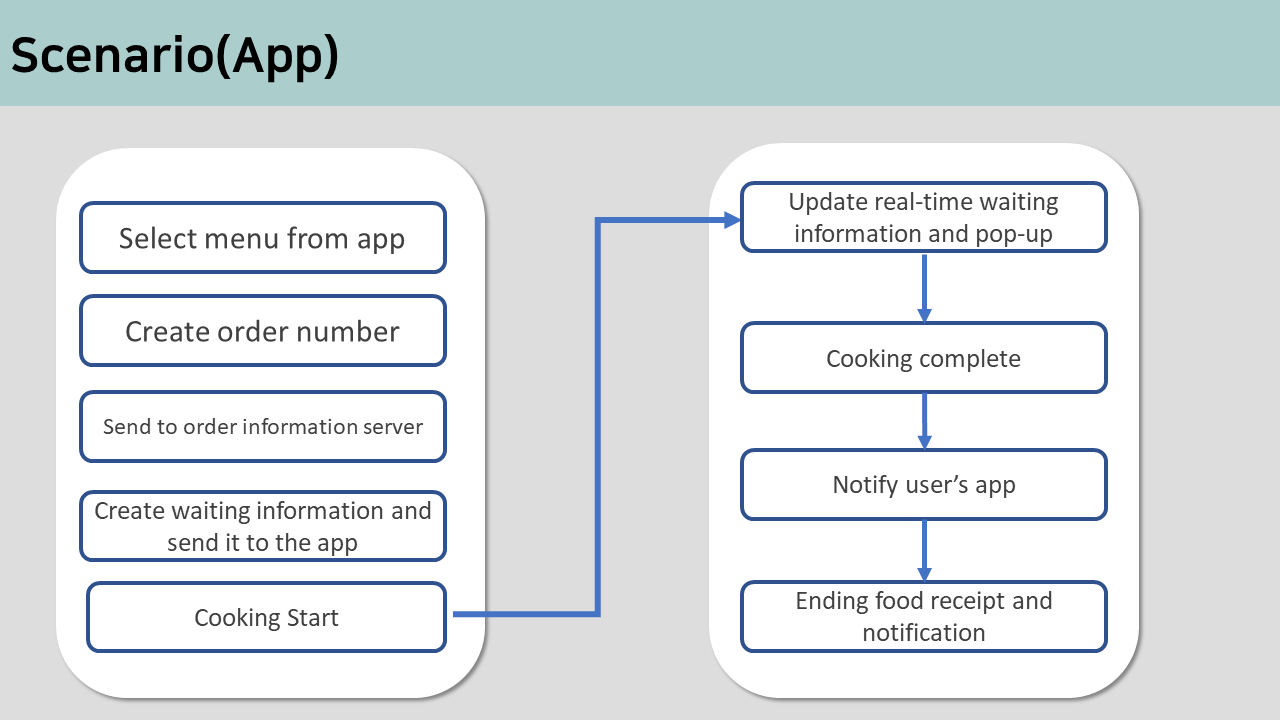

∎ When an app is ordered, waiting information is updated in real time in pop-up window.

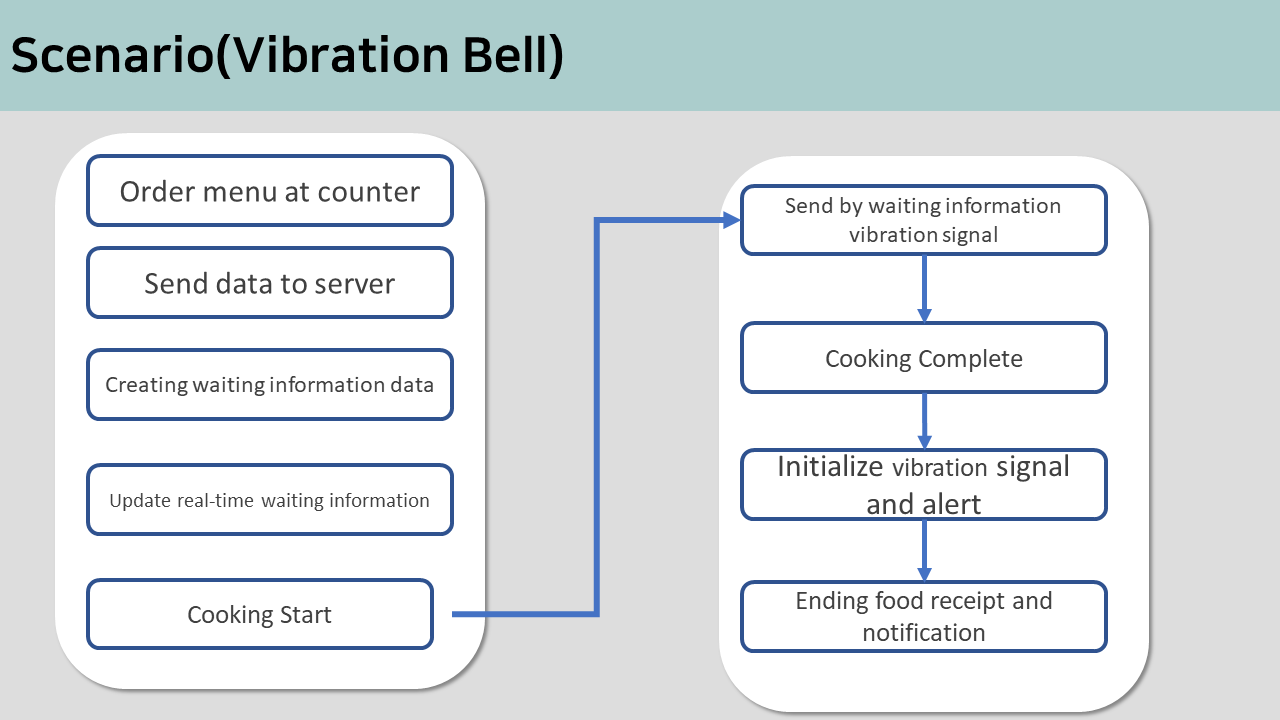

∎ When ordering from a kiosk or counter, the server sends waiting information to the vibrating signal.

∎ When finished cooking is completed, the vibration bell is initialized and the vibration is triggered.





Result

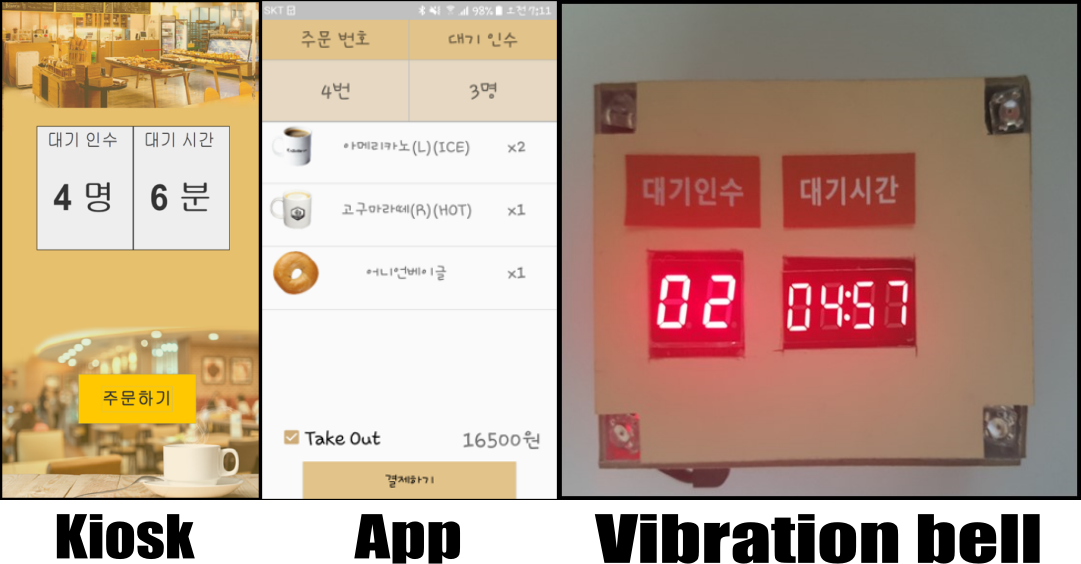

∎ Kiosk : Display waiting information on the first screen.

∎ App : Display waiting information in order screen.

∎ Vibretion bell : The Waiting information is displayed through the FND at the top of the vibrating signal.
